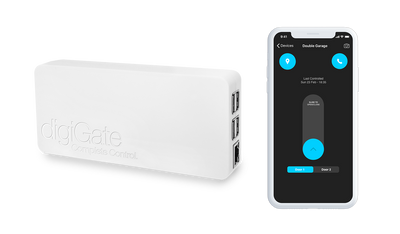

digiGate Electric Garage Home Automation System

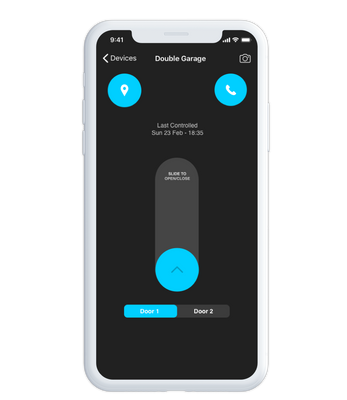

- Control your garage with your smartphone.
- Unlimited user accounts.
- Access control restrictions.
- Automatic proximity opening.
- Alexa, Siri & Google voice control.
- Many more features!
Single Door (same button opens & closes door)
Your garage door has 1 button which operates it. This button opens the door and also closes it.
Single Door (Separate open/close buttons)
Your garage door has 2 buttons which operate it. There is 1 button which opens the door and a separate button to close it.
2 Doors (each door with single open/close button)
Your garage has 2 adjacent doors, each with a single button that both opens and also closes the door.
Risk free trial
Return your digiGate within 2 weeks of purchase to receive a full refund. No questions asked.
No monthly fees!
Purchase digiGate and enjoy a lifetime of use.
1 year standard with extension available.
See if your garage is on the compatibility list for digiGate. Give us a shout if you don't find it on the list and we'll check it for you!
View Garage Compatibility List
Orders with next business day shipping must be placed before 3pm to receive the next business day. Orders after 3pm will be dispatched the following day.
digiGate Technical Information
All digiGate systems come with an Ethernet port and WiFi module as standard.

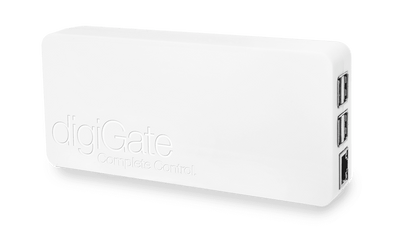

Main unit dimensions: 7cm x 15cm x 3cm
5v 3A Micro USB power from either mains plug, 230-5v transformer & micro usb cable or POE. Mains plug supplied as standard unless specified in customer order notes.
Single Door (same button opens and closes door)
1 output to control 1 electric garage door. Connections are made to the garage controller via terminals 1 & 2 (NO & COM).
Single Door (separate open/close buttons)
2 outputs to control 1 electric garage door. Connections are made to the garage controller via terminals 1 & 2 (NO & COM) and 6 & 7 (NO & COM).
2 Door system
2 outputs to control 2 adjacent electric garage doors. Connections are made to the garage controllers via terminals 1 & 2 (NO & COM) for door 1 and terminals 6 & 7 (NO & COM) for door 2.
digiGate system and accessories are not waterproof. digiGate should be fitted inside an IP rated waterproof enclosure if it can't be fitted inside the garage.
In the box
- digiGate Electric Garage system
- Power plug or transformer + cable
- Switch cabling to connect to the garage
- WiFi module
- Mounting bracket
- Quick start guide
