digiGate is compatible with 99.9% of electric gate systems! Your gate controller just needs to accept a timer and have auto closing enabled. See if your gate is on the list of most popular controllers. Give us a shout and we'll let you know how it will connect!
Shipping Orders with next business day shipping must be placed before 3pm to receive the next business day. Orders after 3pm will be dispatched the following day. All shipping time estimates are in business days and exclude bank holidays.

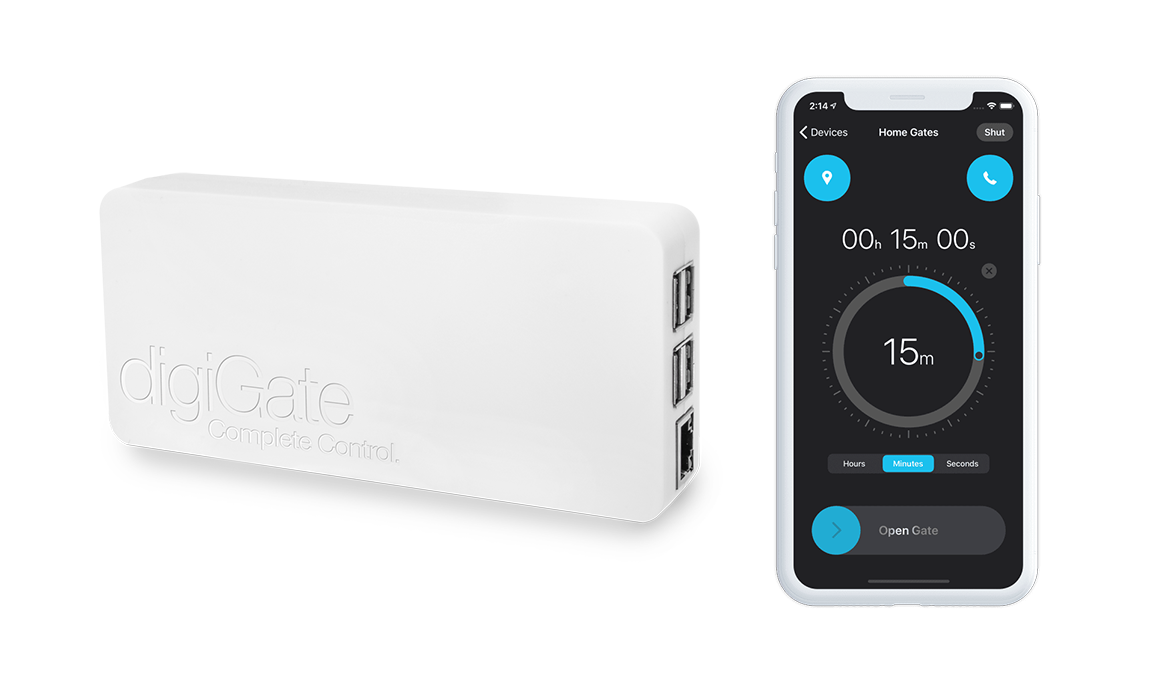

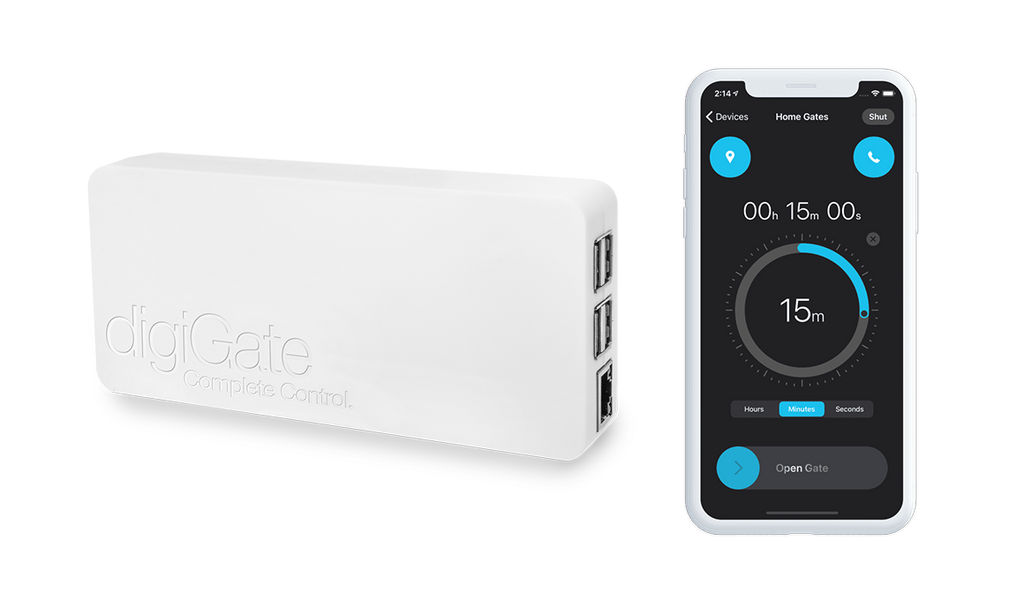

digiGate Technical Information

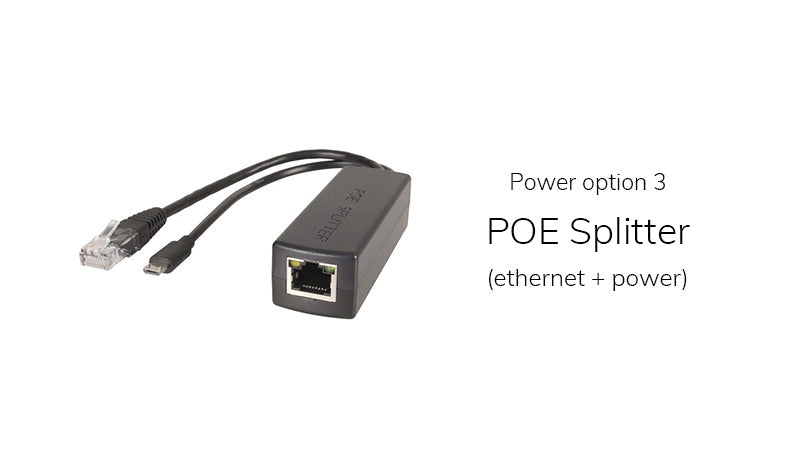

All digiGate systems come with an Ethernet port as standard and WiFi antenna if selected. POE splitters do not come with a WiFi antenna.

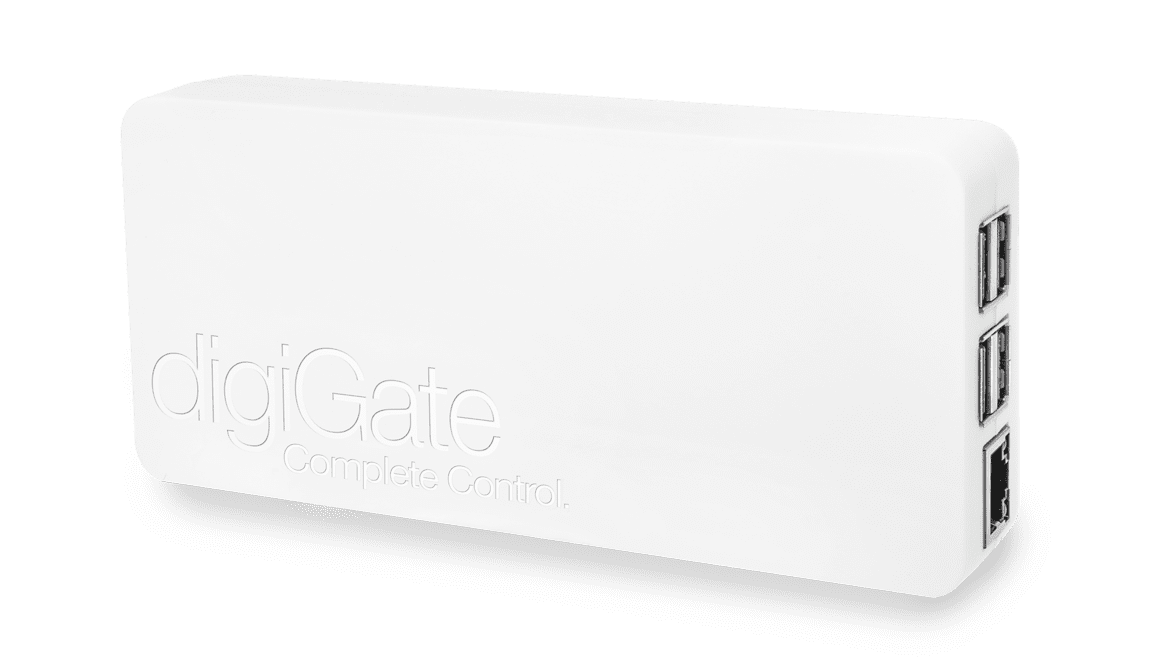

Main unit dimensions: 7cm x 15cm x 3cm

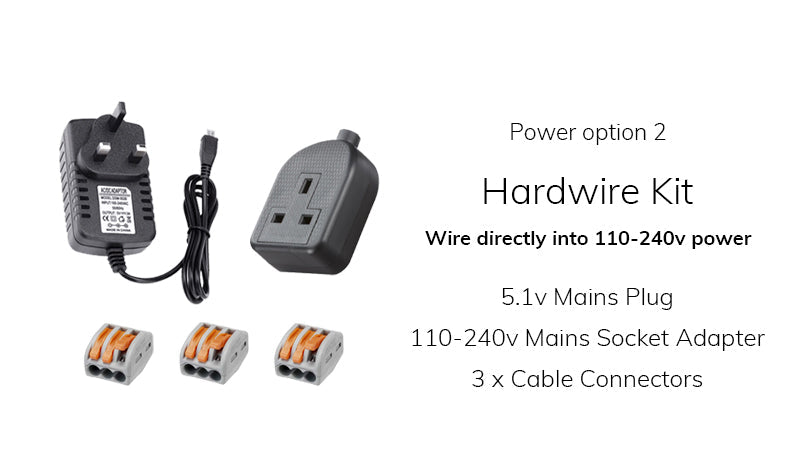

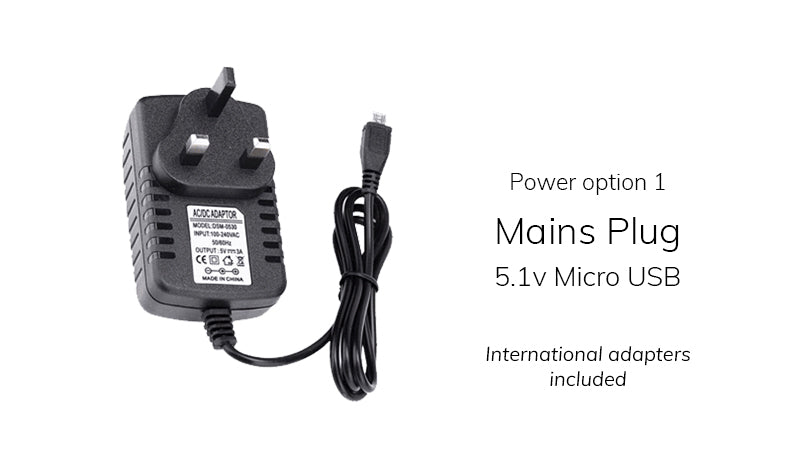

5v 3A Micro USB power from either mains plug or 230-5v transformer & micro usb cable.

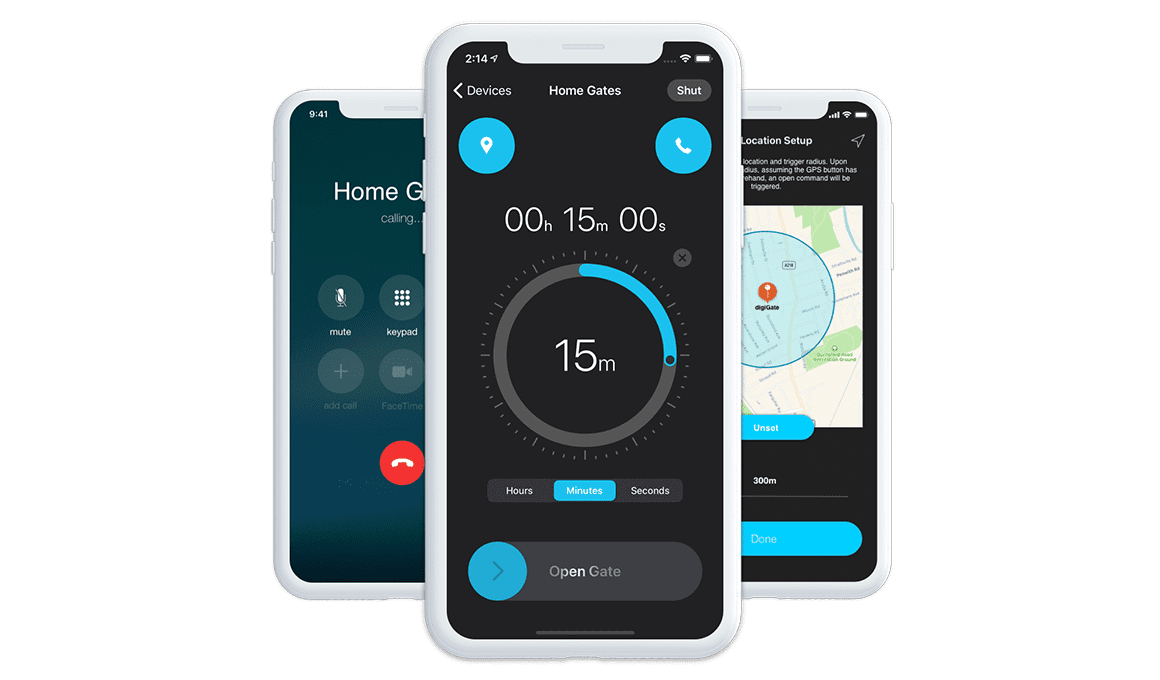

digiGate main gate control sends a 1 second pulse, timed pulse (up to 24 hours) or permanent signal (permanent latch command) to the main open input on your gate controller.
digiGate pedestrian control sends a 1 second pulse signal to the pedestrian input on your gate controller.
digiGate Electric Gate system has 1 output to control 1 electric gate. Connections are made to the main gate via terminals 1 & 2 (NO & COM) and pedestrian gate via terminals 6 & 7 (NO & COM).
Terminal 1: Normally open (NO) - Main Gate
Terminal 2: Common (COM) - Main Gate
Terminal 3: Empty
Terminal 4: Empty
Terminal 5: Normally closed (NC) - Main Gate
Terminal 6: Normally open (NO) - Pedestrian gate
Terminal 7: Common (COM) - Pedestrian gate
digiGate system and accessories are not waterproof. If there's no space in your gate control enclosure, digiGate should be fitted inside another IP rated waterproof enclosure if it can't be fitted inside a building.
Gate Controller The gate controller must accept a timer input and have auto closing enabled (which 99% of them already do). Pedestrian control must accept a 1 second pulse signal.
In the box
- digiGate Electric Gate system + Pedestrian Control - Power supply (or POE splitter if selected) - WiFi antenna (if selected) - Mounting bracket - Quick start guide
