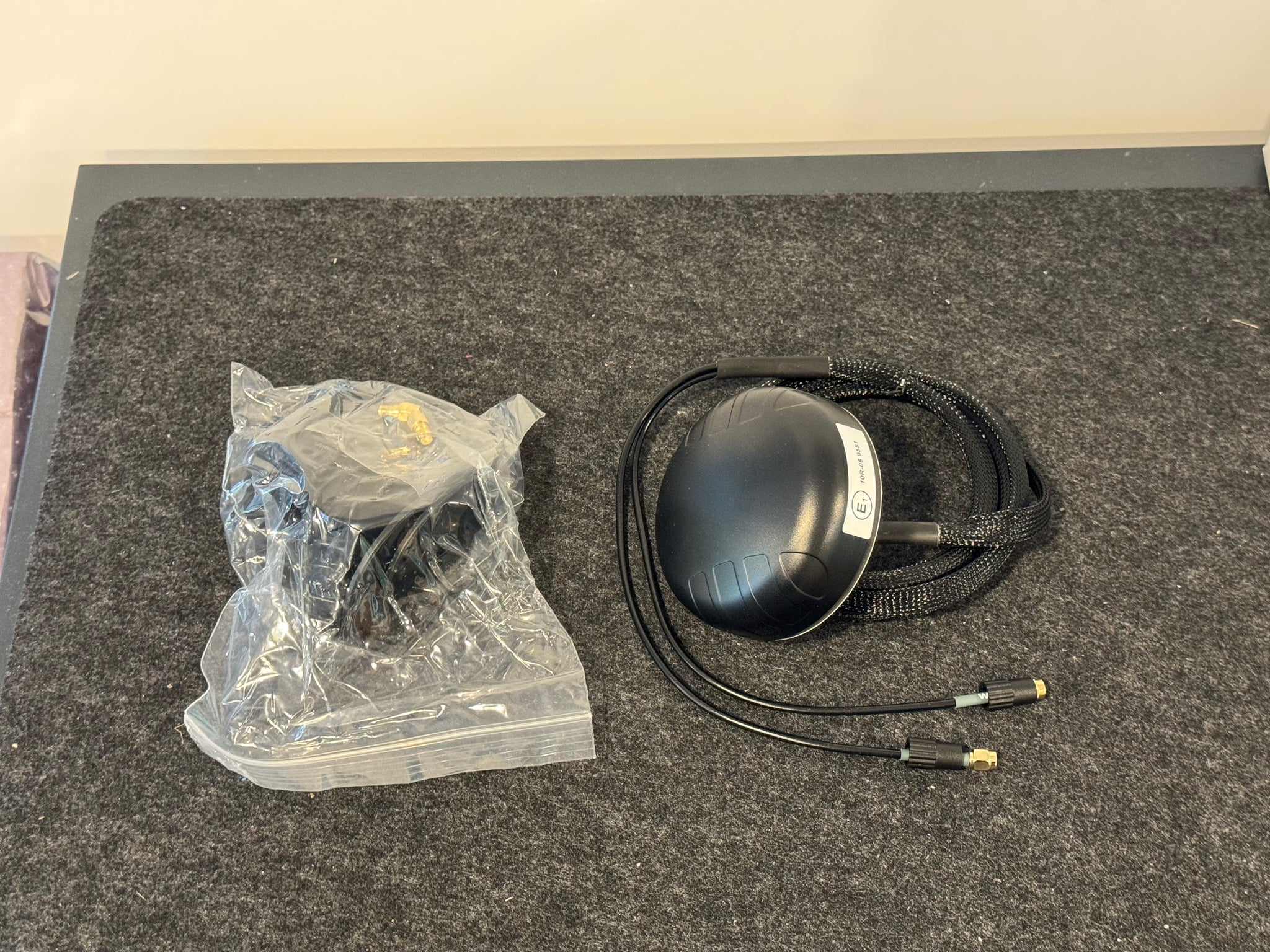

In the box

Your long range WiFi antenna will include the antenna itself, bag of mounting brackets & WiFi USB connector.

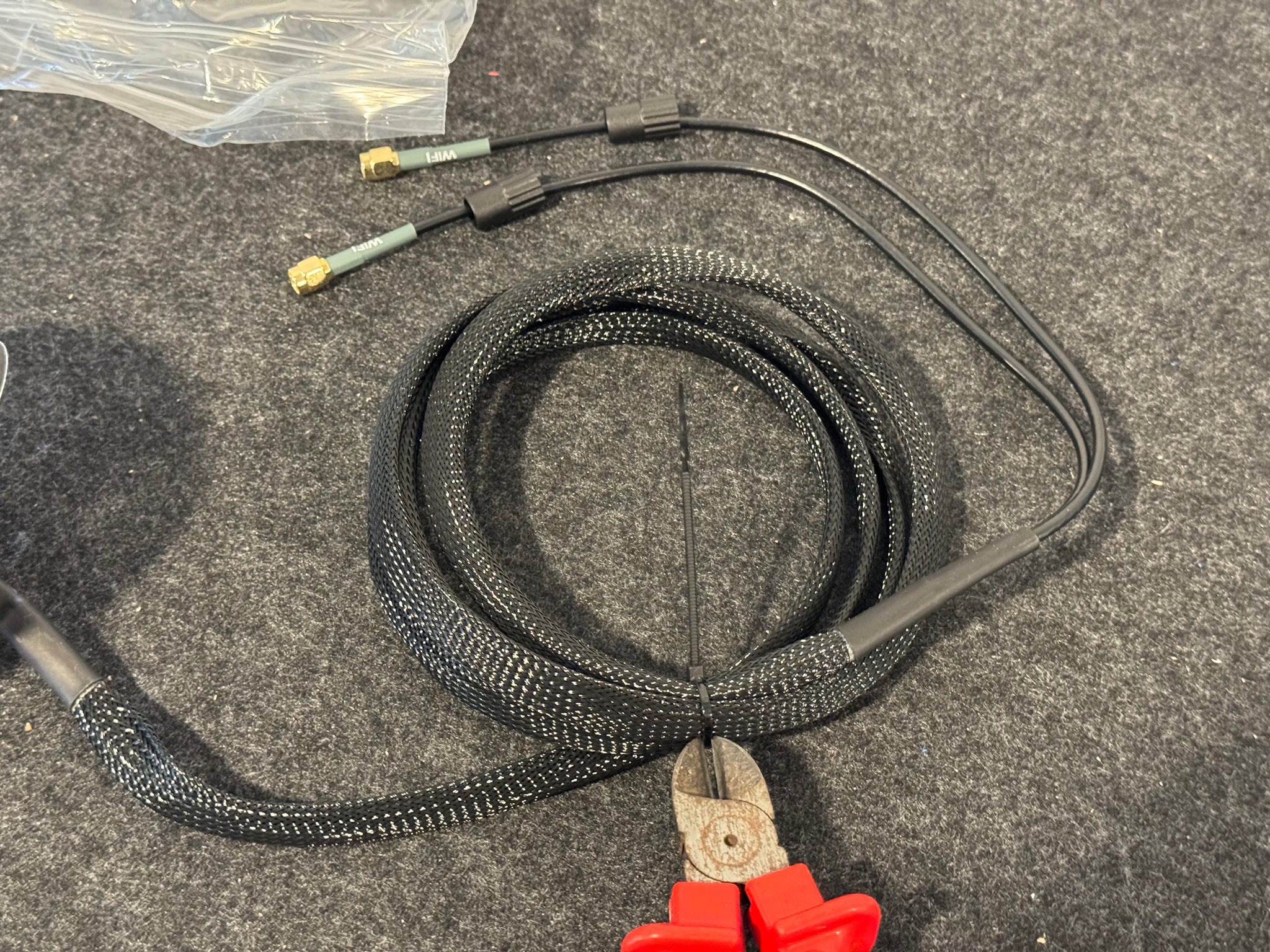

1. Cut off the cable tie

This will enable you to perform the necessary steps to setup the antenna.

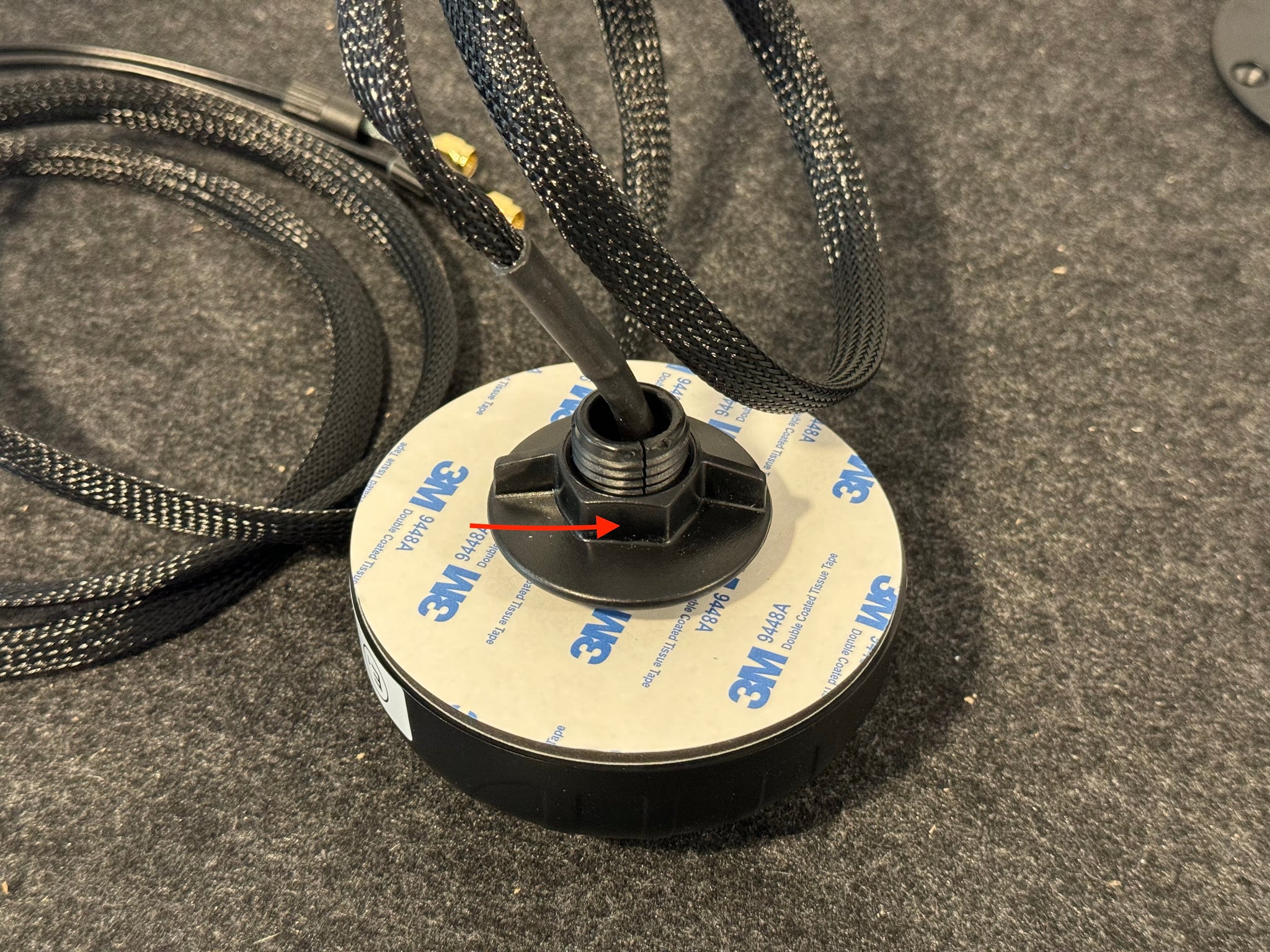

2. Remove the plastic nut

Unscrew the plastic nut and remove entirely by sliding the cables through it.

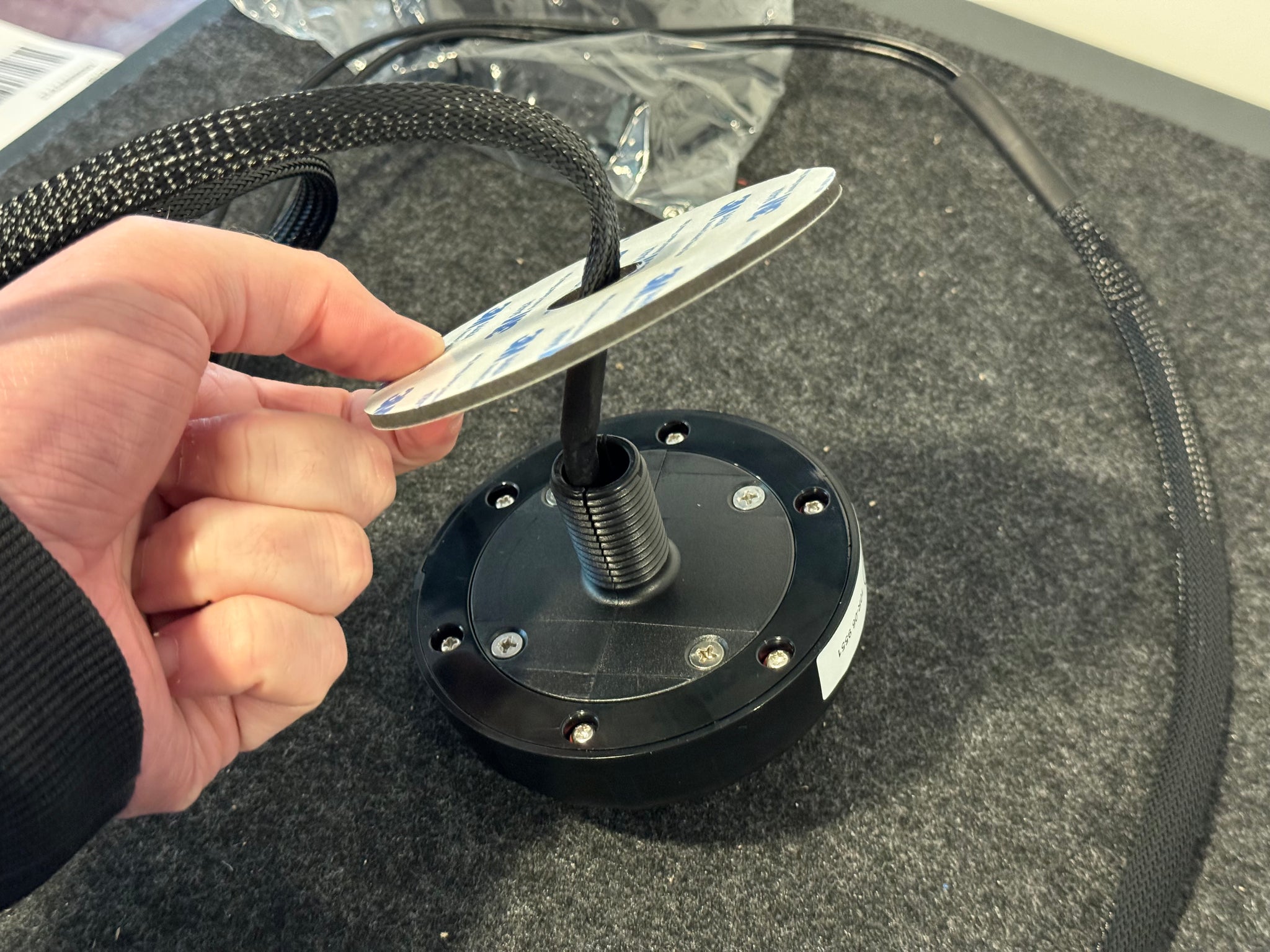

3. Remove 3M sticker

With the nut removed, slide off and totally remove the 3M sticker to reveal screws underneath.

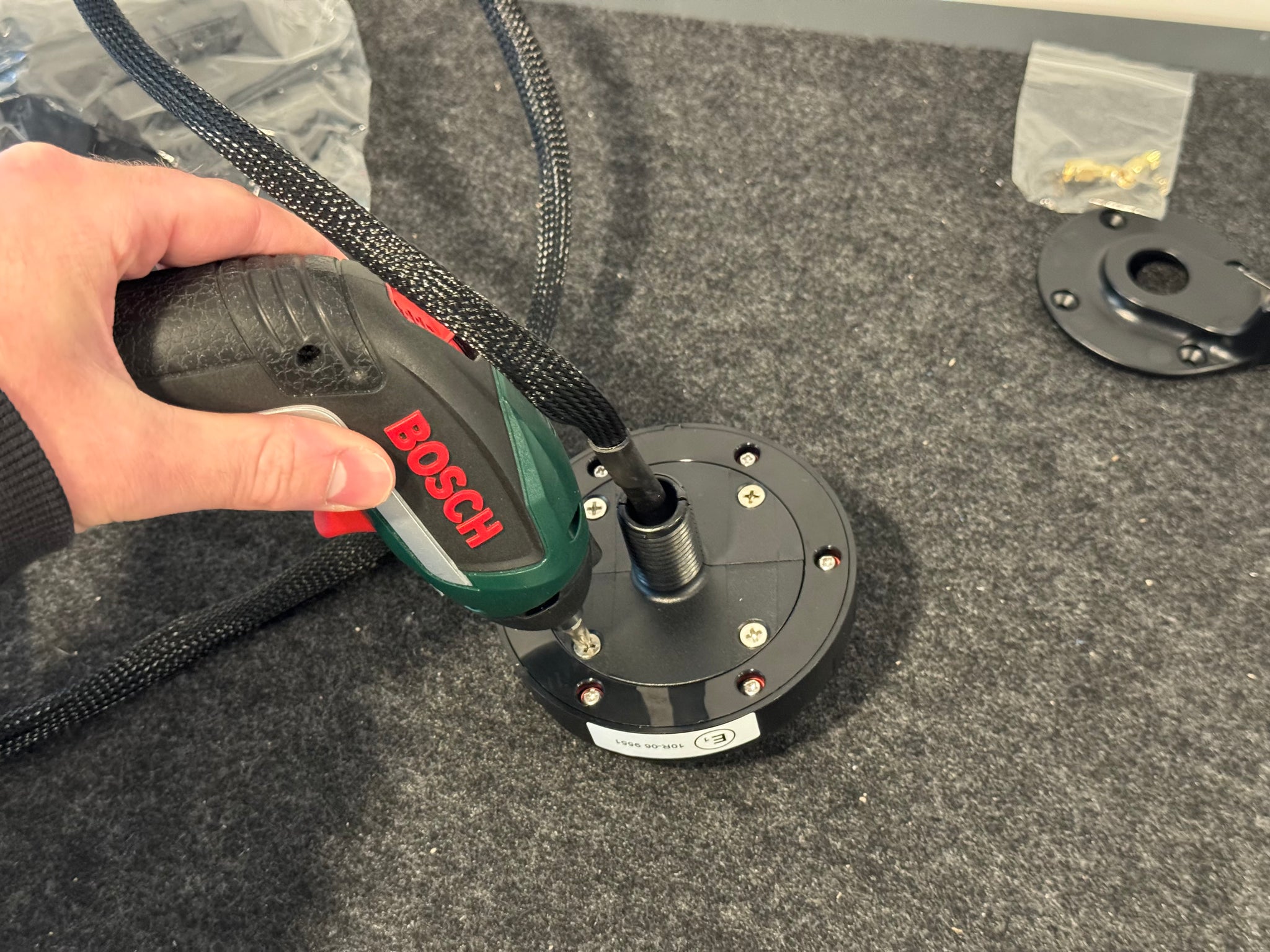

4. Unscrew the 4 screws

Unscrew the 4 screws holding the remaining bracket onto the antenna. Remove the bracket and keep the screws aside.

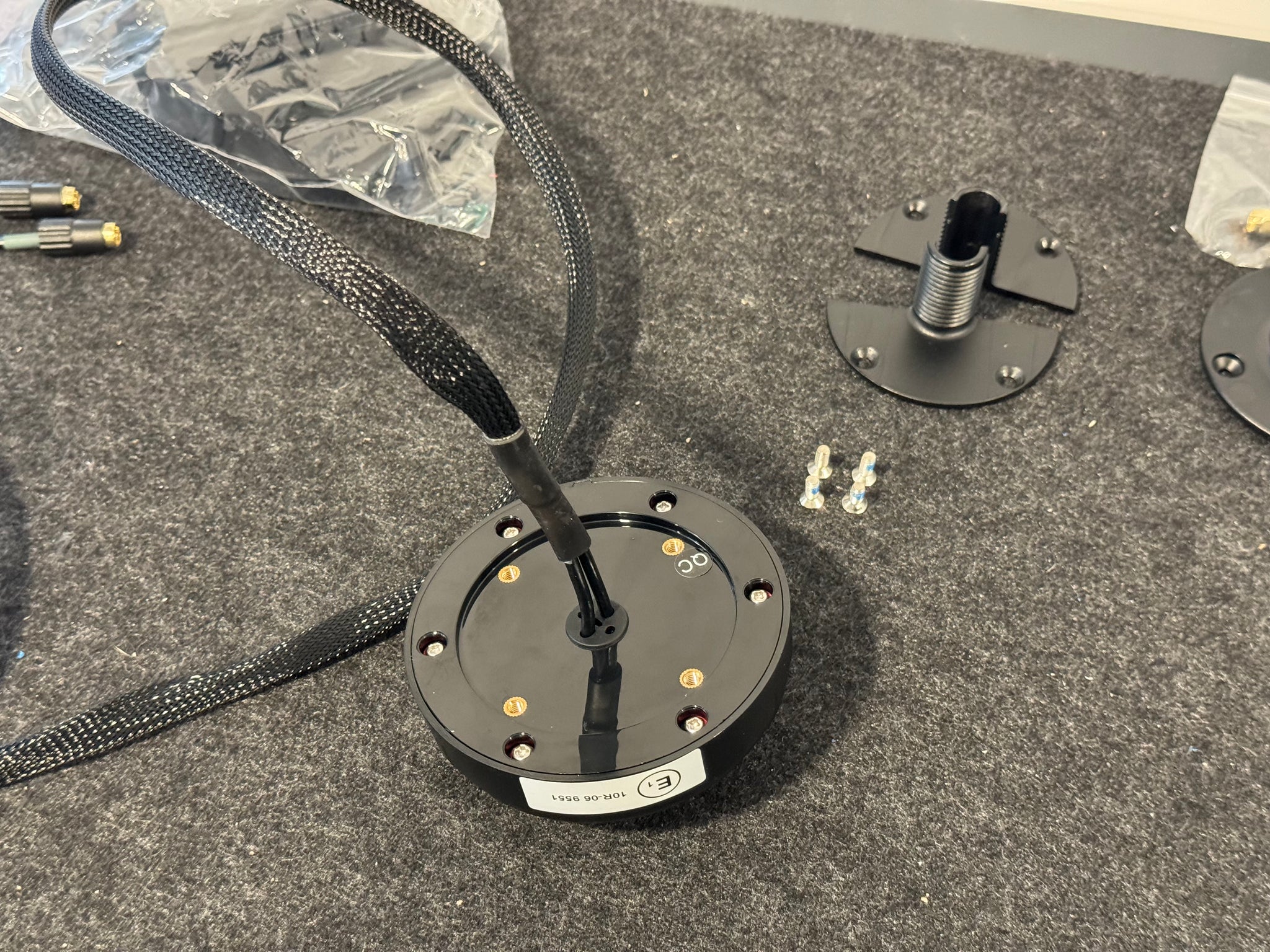

Current state

The antenna should look like this picture with everything removed, ready to add the wall mount.

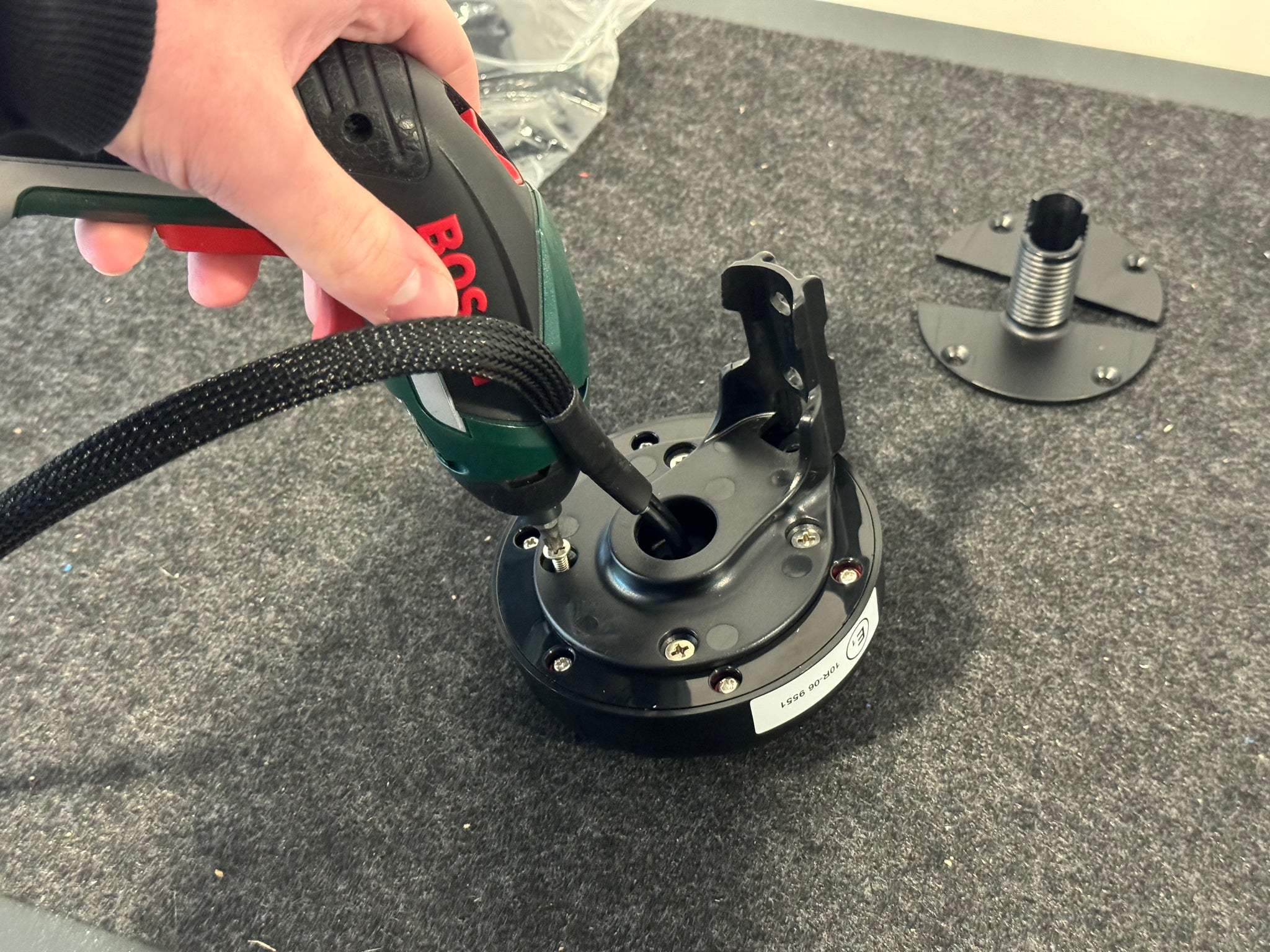

5. Attach wall bracket

With the 4 screws, locate the wall bracket from the packet, loop all the cabling through, and screw to the base of the antenna firmly.

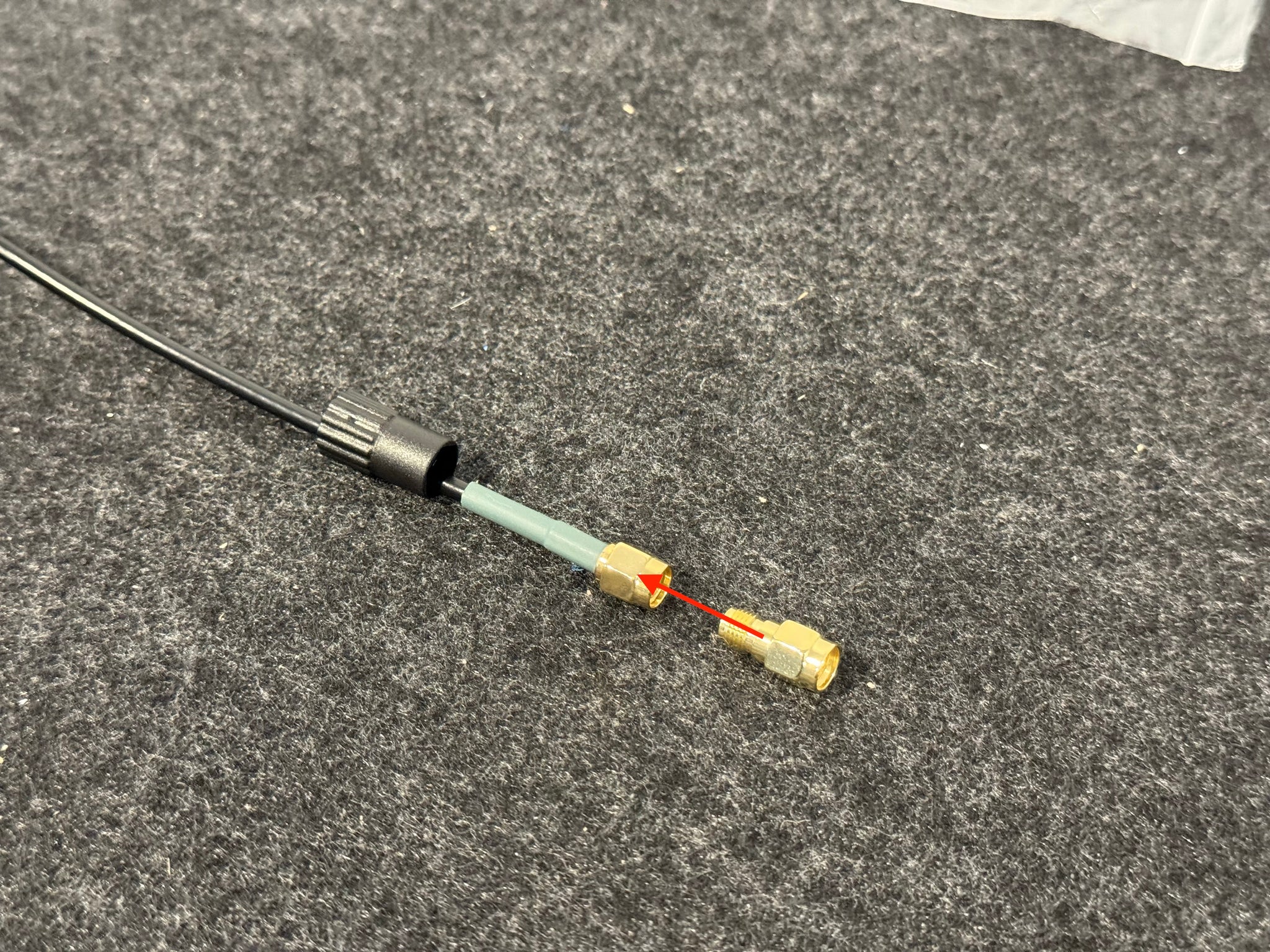

6. Attach antenna adapter

Locate the antenna adapter from the packet. Hold one end of a cable firmly and screw the adapter on. You will see one end is male and one female. Make sure this is firmly attached and doesn't rotate.

Note: only 1 cable is used on the antenna and it does not matter which.

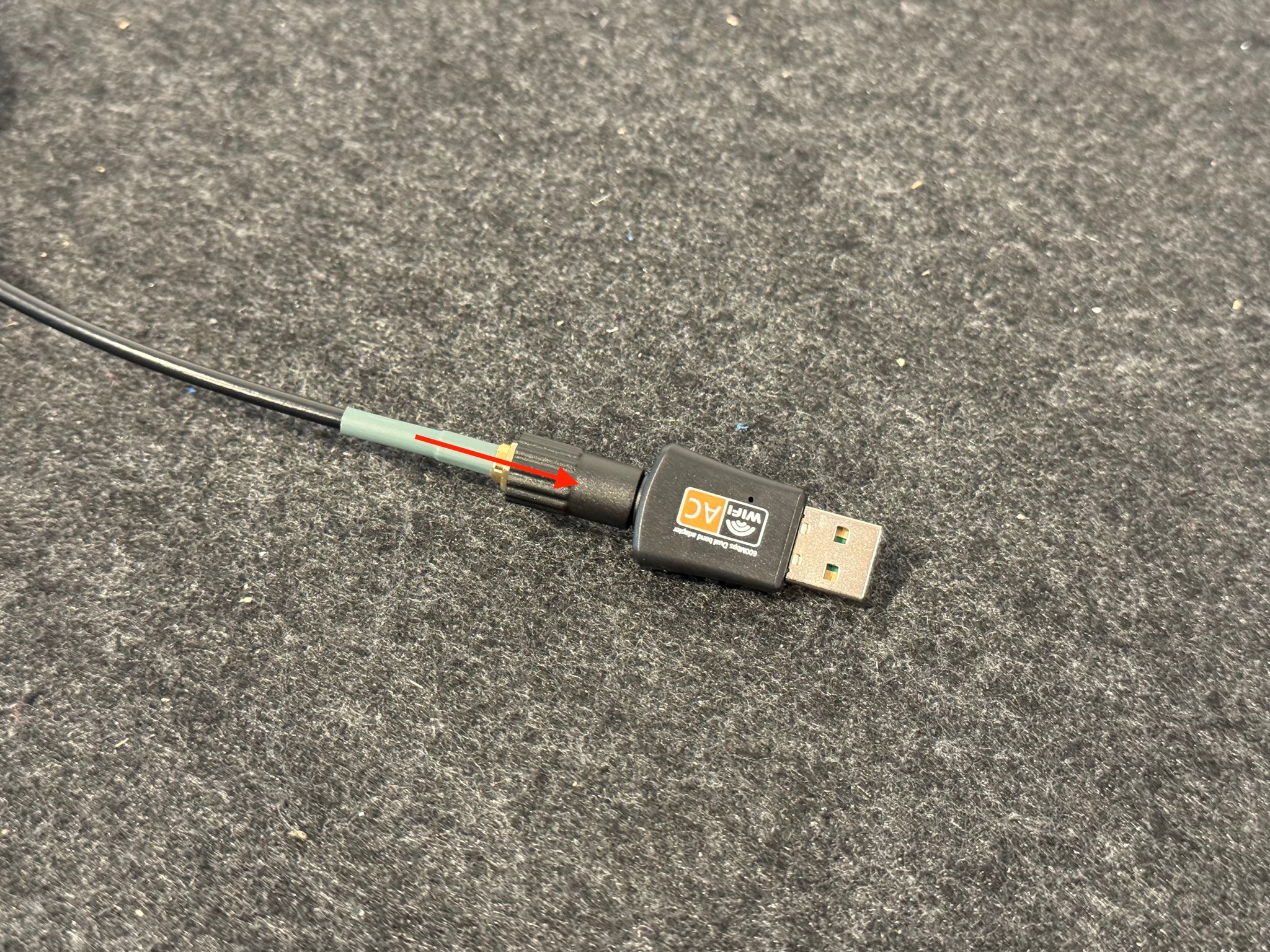

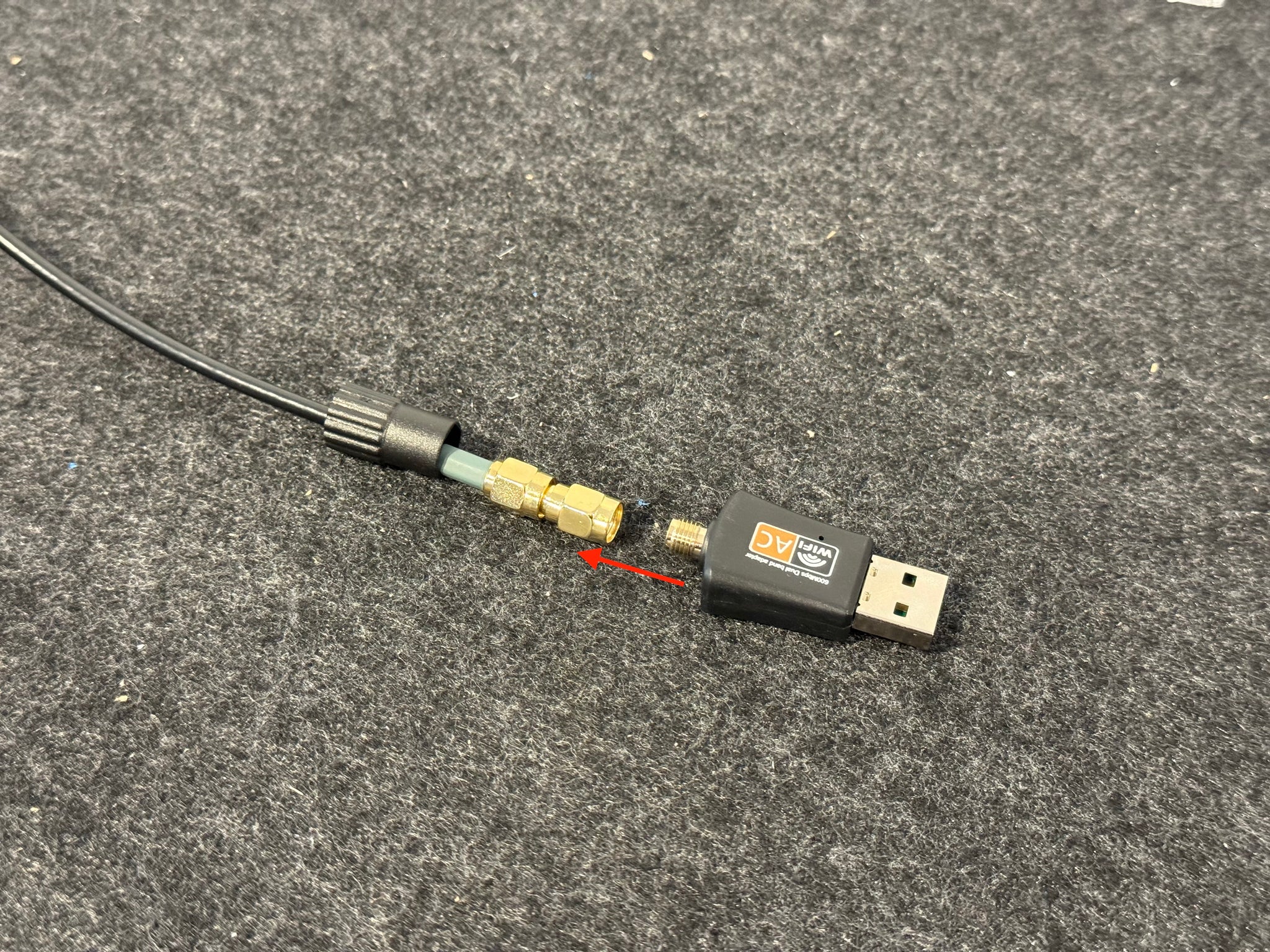

7. Attach USB Connector

Hold the end of the antenna adapter and screw on the USB connector. Do not overtighten.

8. Slide black cap on

Slide the black cap from the cable over the connections to lock everything into place.

Your antenna is now ready to be plugged into a digiGate system and used!
