digiGate Pro - Additional Wireless Receiver
£350
ex VAT
The digiGate Pro Wireless Receiver allows you to expand your existing digiGate Pro system and control additional gates, barriers, bollards, garages or other access points.
What’s Included
Each wireless receiver package includes:
• 1 × digiGate Pro Wireless Receiver
A long range receiver module with 4 relay outputs for controlling electric gates, barriers, bollards, roller doors, garages and other access devices. Pairs with your existing digiGate Pro hub.
• 1 x Installation Guide
The receiver is powered using 9–48V DC or USBC, providing flexible installation options.
Din Rail or screw mountable enclosure
Enclosure has built in din rail mount at the back and screw holes in the corners for easy mounting.

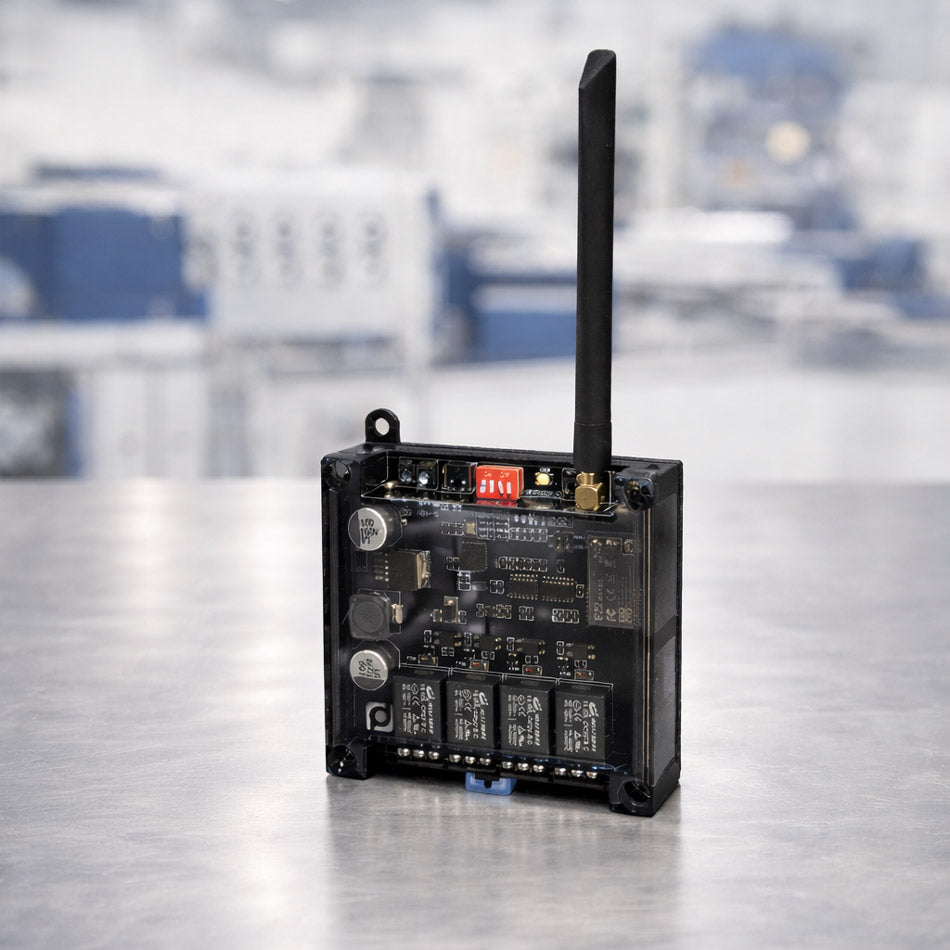

digiGate Pro Wireless Receiver
Using secure long range wireless communication with the digiGate Pro hub, the receiver provides four relay outputs which can be connected to gate controllers, access systems or other automation equipment.
This makes it easy to extend your system and manage multiple access points from a single platform.
Requires a digiGate Pro Hub to operate.
Quick Installation
The receiver has been designed for quick and straightforward installation.
• Connect the receiver to a suitable 9–48V DC power supply or USB-C
• Wire the relay outputs to your gate or access controller
• Pair the receiver with your digiGate Pro hub through the management console
Once paired, the receiver becomes available immediately for configuration and control.
Ideal For

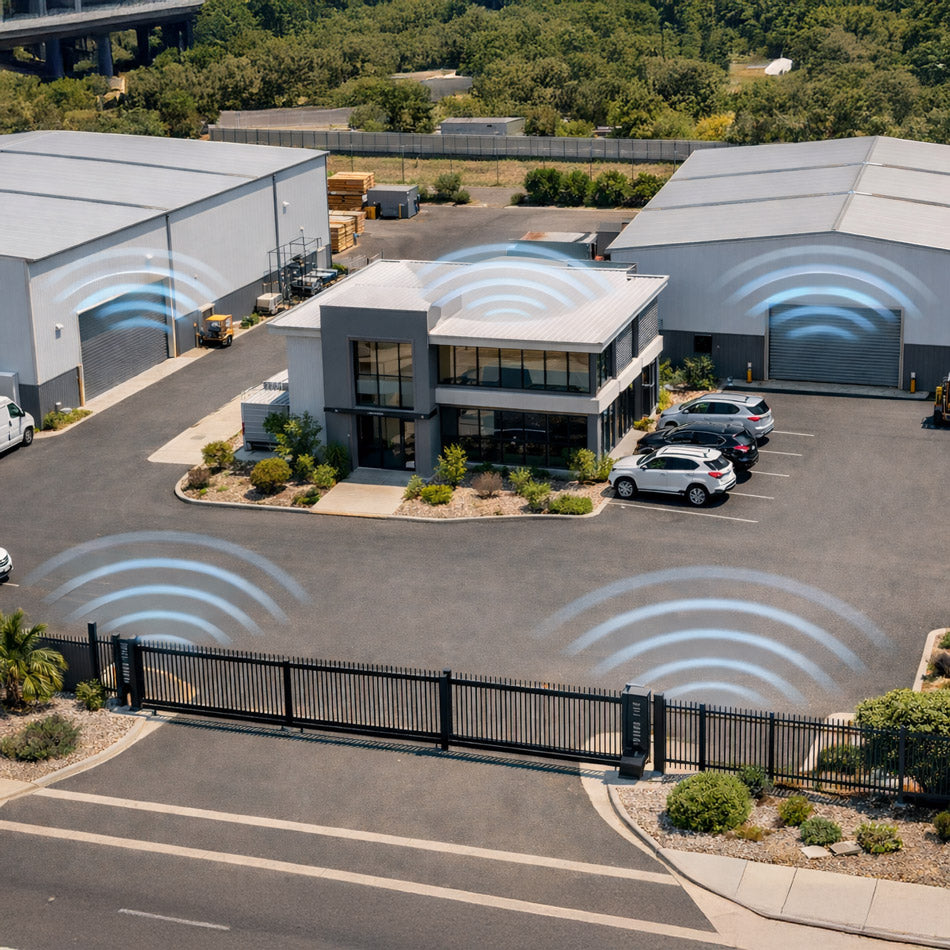

Additional receivers are commonly used when expanding a digiGate Pro system to control multiple access points.
Typical applications include:
• Additional electric gates
• Vehicle barriers
• Security bollards
• Roller doors and shutters
• Garage doors
• Access points across large sites
Important notes
The unit is not waterproof.
